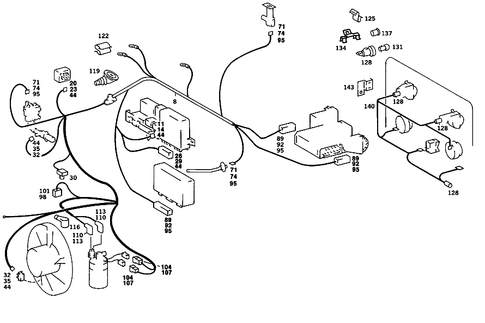

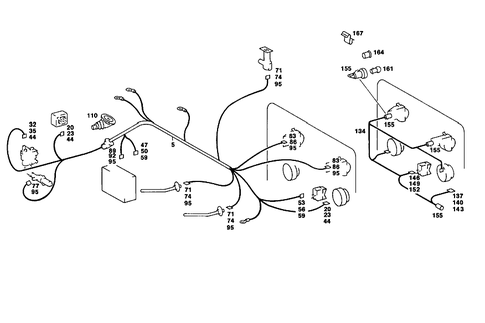

Addit. Cable Harness for Air Condit. , Auto. Air Condit. , Heatg. Control Lightg for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
23
Coupling, Mechanical
Mercedes-Benz
Mercedes-Benz Description: To 006 543 81 28. 8-pole. To 006 545 81 28,009 545 53 28. To 006 545 20 28.
50
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: To 008 545 08 28. Cool box a39/1. To 008 545 09 28. Blower. Brake fluid control,brake lining wear indication.
50
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
53
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
$5.88
$5.88
59
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
$4.08
$4.08
71
Housing Lower Part Mercedes-Benz
Mercedes-Benz Description: Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.
$3.84
$3.84
74
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.
$2.88
$2.88
77
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Heating water valve. 4-pole. 4-pin. Outside temperature indicator. 4-pin. Cryostat. 4-pin. Tempmatik control box. 4-pin. Speedometer. 4-pin. Quadruple. 4-pin.
$3.48
$3.48
83
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Sliding roof switch. 6-pin. Automatic antenna. 6-pin. Tempmatik control box. 6-pole. 6-pin. Mirror adjustment switch. 6-pole. 6-pin. Dome lighting. 6-pin. Temperature selector gear. 5-pole. 6-pin. Electrical antenna,6-pole. 6-pin.
$1.68
$1.68
86
$2.64
95
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
$3.24
$3.24
110
Grommet Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Brake fluid control branch-off. Electric cable thru fuse box and relay case. Electric cable thru fire wall. Right. Electric cable thru tunnel.
134
Wiring Harness Mercedes-Benz
Mercedes-Benz Description: Heating control lighting. Lighting of heating operation unit.
146
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Heating control lighting. 2-pin. Regulating valve. 2-pin. Safety switch. 2-pin. Clutch "2". 2-pin. Lighting of gear indicator. 2-pin.
155
Socket Mercedes-Benz
Mercedes-Benz Description: Heating control lighting. Lighting of operating unit. Blower switch and heating control. Bulb.
161
Bulb Mercedes-Benz
Mercedes-Benz Description: Charge control lamp used for second alternator w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Cigar lighter. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Three-hole mounting w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. J-12V ...
$5.52
$5.52
167
Clip Mercedes-Benz
Mercedes-Benz Description: Electric cable to rear foglamp. 13x14 mm. For main cable harness to reverse drive light at gutter. 13x14 mm.
167
Clamp Mercedes-Benz
Mercedes-Benz Description: Main cable harness branch-off towards washer nozzle heating to engine hood. 18 x 13 mm. Electric cable to rear lid left hinge. 18 x 13 mm. Tail lamp cable harness to rear lid. 18 x 13 mm. Branch-off to luggage compartment to hinge. 18 x 13 mm. Automatic transmission cable harness. 18 x 13 mm.
No.
Part # / Description / Price
Price
14
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
$3.84
$3.84
26
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'82
Description: Hydraulic unit. 12-pin. 10-pole. 12-pin. Test instrument connection. 12-pole. 12-pin. Plug, 12-pin. 12-pin. Switchgear, 12-pole. 12-pin.
29
Cap Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'82
Description: To 008 545 26 28. Hydraulic unit to 009 545 26 28.
30
Electric Coupling Mercedes-Benz
Mercedes-Benz Description: Belt locking retractor feed-in. Speed signal. 1-pin. Cockpit cable harness. 1-pin. From electrical compartment plugconnection to indicating instruments. 1-pin. Plug connection kl 87 ug. 1-pin. Temperature sensor refrigerant indicator. 1-pin. Temperature switch,16 degs.. 1-pin. Used without automatic air conditioner. 1-pin.
$3.84
$3.84
98
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Compressor,2-pole. Bipolar. Main switch,compressor switch & bi-level switch. Kaeltekompressor. A/c compressor.
113
Insulating Sleeve Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'82
Description: To 000 546 83 40. To 000 546 79 40. To 000 546 583 40. Charge control. Electric cable to pressure switch. Low pressure switch.
116
Protective Cap Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'82
Description: Above cable to "thermo" switch. Pressure switch. Thermoswitch cable.
$39.00
$39.00
