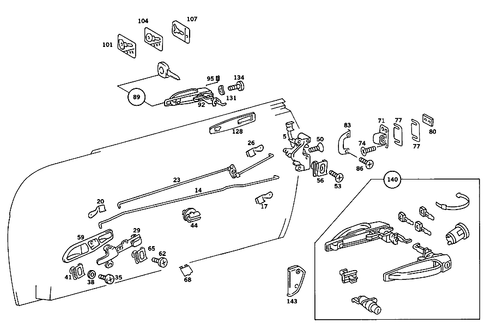

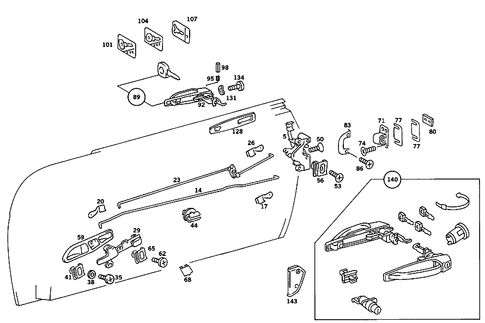

Locking System for 1985 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
17
Securing
Mercedes-Benz
Mercedes-Benz Description: Control rod to front door lock. Lever to rear door interior locking device. Folding armrest. Interior handle assembly pull rod. Shifting rod to bracket and to hook.
$4.80
$4.80
44
Clamp Mercedes-Benz
Mercedes-Benz Description: Reversing lever. Locking linkage to door. Rear pull rod to door.
$2.40
$2.40
53
Countersunk Screw Mercedes-Benz
Mercedes-Benz Description: Door lock to front door interior plate. Door lock to rear door interior plate. Front fender to front stiffening. Door lock to door framework. Lock upper part to rear lid. Mounting to front panel frame.
86
Screw Mercedes-Benz
Mercedes-Benz Description: Edging to rear door. Edgings to doors. Handle to glove compartment lid. Blinker lamp shell to base plate.
89
Door Handle Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
Description: Left;workshop version,with key;any lock.
89
Door Handle Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
Description: Right;workshop version,with key. Any lock.
95
Compression Spring Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
Description: "huf".
101
Key Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
Description: Master key.
104
Secondary Key Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
Description: Secondary key.
107
Key Mercedes-Benz
Mercedes-Benz Notes: STANDARD VERSION FROM CHASSIS:
022 006132
023 012983
024 024514
026 000428
042 005114
043 014030
044 051686
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
CENTRAL LOCKING MECHANISM FROM CHASSIS: 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
STATE LOCK NUMBER WHEN ORDERING
Description: (flat key).
134
Screw Mercedes-Benz
Mercedes-Benz Description: Electric cable to central electric system terminal 30. Cable harness to cable connector. Cables to cable connector.
140
Outfit (Lock, Key, Handle) Mercedes-Benz
Mercedes-Benz Notes: FROM CHASSIS NEW EQUIPMENT 9/82
042 014438 ALSO INSTALLED ON
013925, 014092, 014199, 014271, 014344, 014386, 014404, 014408, 014410, 014411, 014414- 014416, 014420- 014436.
045 NOT FUER AUSTRALIA,JAPAN,SWITZERLAND 019195 ALSO INSTALLED ON
016114, 018247, 018626, 018710, 018961.
045 AUSTRALIA 018399
045 JAPAN 018204
045 SWITZERLAND 019229 ALSO INSTALLED ON 014997
046 002200 ALSO INSTALLED ON
001710, 002112, 002138, 002156, 002190- 002192, 002194- 002198.
140
Outfit (Lock, Key, Handle) Mercedes-Benz
Mercedes-Benz Notes: UP TO CHASSIS NEW EQUIPMENT 9/82
042 014437 EXCEPT FOR
013925, 014092, 014199, 014271, 014344, 014386, 014404, 014408, 014410, 014411, 014414- 014416, 014420- 014436.
045 NOT FOR AUSTRALIA,JAPAN,SWITZERLAND 019194 EXCEPT FOR
016114, 018247, 018626, 018710, 018961.
045 AUSTRALIA 018398
045 JAPAN 018203
045 SWITZERLAND 019228 EXCEPT FOR 014997
046 002199 EXCEPT FOR
001710, 002112, 002138, 002156, 002190- 002192, 002194- 002198.
Description: Used without central locking mechanism.
No.
Part # / Description / Price
Price
107
Key Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
STATE LOCK NUMBER WHEN ORDERING
STATE LOCK NUMBER WHEN ORDERING
Description: (flat key).
